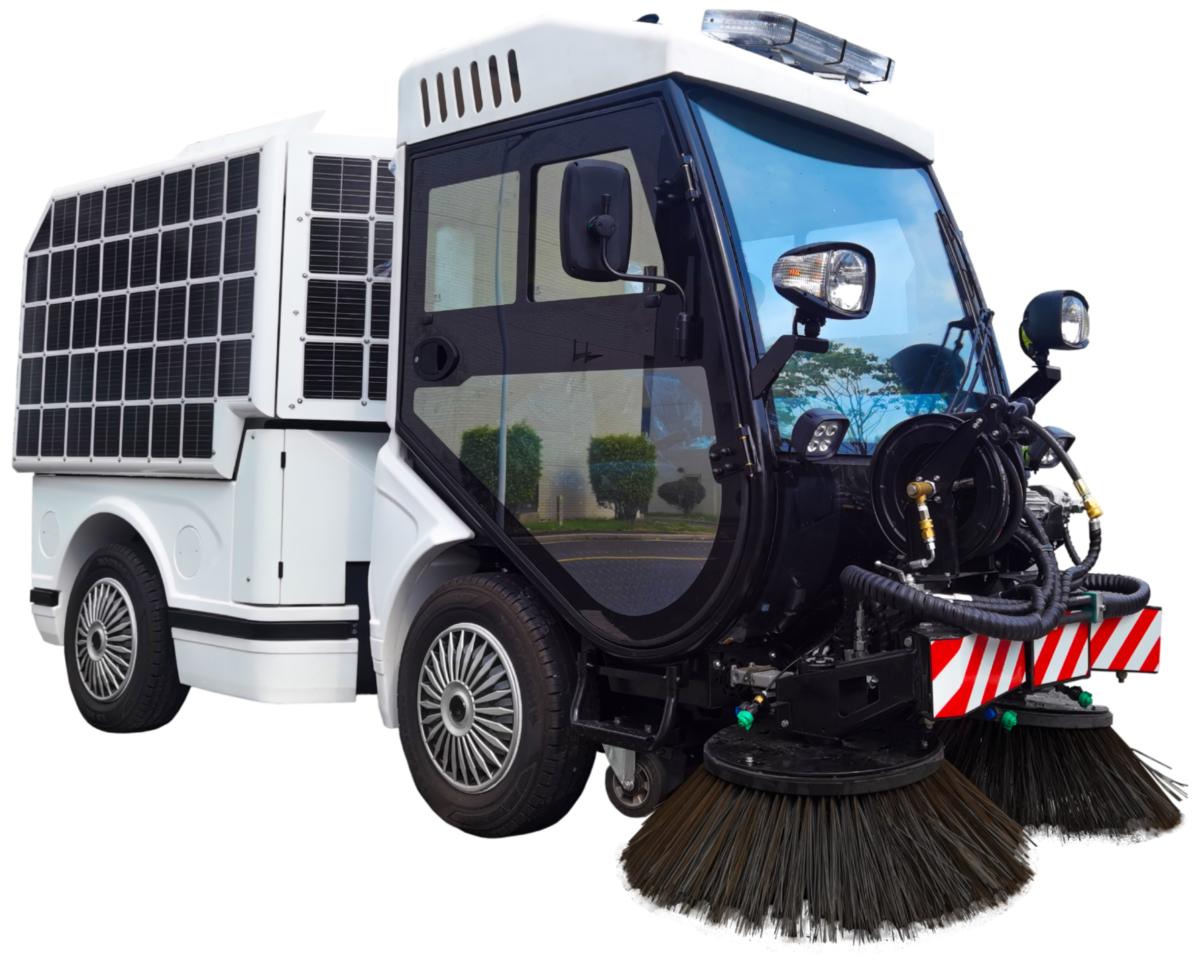

RE-TEV8240 Full-Electric Solar Road Sweeper

The RE-TEV8240 is a full-electric road sweeper with a solar panel for energy saving and charging, designed to be environmentally friendly and high-performing. Its 70 kWh lithium iron phosphate battery pack gives a working autonomy of 8 to 10 hours on a single charge. With a sweeping width of 1.6 to 2.4 meters adjustable from the cabin, a 1.85 m³ hopper and a maximum payload of up to 1 ton, it delivers long battery life and high cleaning efficiency. It is widely used for cleaning urban roads, parks, residential areas, industrial parks and similar scenarios.

Solar

Panel for energy saving

70 kWh

LFP battery pack

8-10 hrs

Autonomy per charge

1.6-2.4 m

Sweeping width

1.85 m³

Hopper capacity

1 ton

Maximum payload

Electric Sweeper Configuration

RE-TEV8240 solar electric road sweeper 70kWh battery pack

Battery Pack

The 70 kWh super-large capacity lithium iron phosphate battery pack provides long endurance, high safety, environmental protection and high efficiency, supporting efficient cleaning and low maintenance costs.

RE-TEV8240 solar electric road sweeper touch-screen controller

Touch-Screen Controller Interface

The street sweeper is equipped with a touchscreen and control panel, featuring a one-touch operation button for a simple and efficient user experience.

RE-TEV8240 solar electric road sweeper industrial electric motor

Industrial Electric Motor

Permanent magnet synchronous motor with high efficiency, low consumption and stable power output, enhancing the cleaning performance of the road sweeper for more durable and efficient operation.

RE-TEV8240 solar electric road sweeper dual-channel driving camera

Dual-Channel Driving Camera

The reversing video and driving recorder dual-recording system enhances the safety of cleaning operations. The operator can monitor the situation behind the vehicle in real time during cleaning and reversing, ensuring more accurate and safe operation.

Sweeping Performance

This solar electric road sweeper features a high-vacuum suction system and excellent cleaning efficiency, with a 700 mm wide suction vent alone. The sweeping width assembly gives a 1.6 m to 2.4 m cleaning track, fully controlled from the cabin.

Other Configuration Included

RE-TEV8240 solar electric road sweeper 5 in 1 controller

5 in 1 Controller

A five-in-one controller with an efficient, stable, integrated design that comprehensively enhances the performance and reliability of the road sweeper.

RE-TEV8240 solar electric road sweeper AC air conditioner

AC Air Conditioner

Roof-mounted integrated air conditioning for heating and cooling, providing a comfortable operating environment throughout the seasons and improving work efficiency.

RE-TEV8240 solar electric road sweeper high pressure washing

High Pressure Washing

The high-pressure wash gun has strong water flow, easily washing the road surface, and can also clean the vehicle. It is efficient in multiple scenarios.

RE-TEV8240 solar electric road sweeper intelligent drainage system

Intelligent Drainage System

Equipped with a one-button wastewater discharge function and an efficient filtration system. The design prevents clogging, ensuring smooth and efficient operation even in rainy conditions.

RE-TEV8240 solar electric road sweeper 2-seater cabin

2-Seater Cabin

The cab is equipped with a dual-seat design, convenient for two people to work collaboratively.

RE-TEV8240 solar electric road sweeper side suction hand-held hose

Side Suction Hand-Held Hose

Equipped with a vacuum suction hose, easily cleaning hard-to-reach areas such as bushes and lawns, and expanding the cleaning range.

CODE	RG-TEV8240
Unladen Weight	2,470 kg
Gross Weight	3,980 kg
Hopper Max. Load	1 ton
Hopper Volume	1.8 m³
Battery Type	Lithium-ion Phosphate
Battery Capacity	70 kWh
Working Autonomy	10 hours
Fast-Charging	22 kW (3-4 hour)
Sweeping Width	1.6 m – 2.4 m
Sweeping Speed	5 – 12 km/hour
Travel Speed (Max.)	28 km/hour
Water Tank Capacity	386 L
Hopper Dump Height (Max.)	1.5 m
Origin	Made in Korea

RG-TEV8240 (EV)
